Survival analysis

This notebook presents example usage of package for solving survival problem on bmt dataset. You can download dataset here

This tutorial will cover topics such as:

- training model

- changing model hyperparameters

- hyperparameters tuning

- calculating metrics for model

- getting RuleKit inbuilt

Summary of the dataset

from scipy.io import arff
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np

datasets_path = ""

file_name = 'bmt.arff'

data_df = pd.DataFrame(arff.loadarff(open(datasets_path + file_name, 'r', encoding="cp1252"))[0])

# code to fix the problem with encoding of the file
tmp_df = data_df.select_dtypes([object])
tmp_df = tmp_df.stack().str.decode("cp1252").unstack()
for col in tmp_df:
    data_df[col] = tmp_df[col]

data_df = data_df.replace({'?': None})

data_df

	Recipientgender	Stemcellsource	Donorage	Donorage35	IIIV	Gendermatch	DonorABO	RecipientABO	RecipientRh	ABOmatch	...	extcGvHD	CD34kgx10d6	CD3dCD34	CD3dkgx10d8	Rbodymass	ANCrecovery	PLTrecovery	time_to_aGvHD_III_IV	survival_time	survival_status
0	1	1	22.830137	0	1	0	1	1	1	0	...	1	7.20	1.338760	5.38	35.0	19.0	51.0	32.0	999.0	0.0
1	1	0	23.342466	0	1	0	-1	-1	1	0	...	1	4.50	11.078295	0.41	20.6	16.0	37.0	1000000.0	163.0	1.0
2	1	0	26.394521	0	1	0	-1	-1	1	0	...	1	7.94	19.013230	0.42	23.4	23.0	20.0	1000000.0	435.0	1.0
3	0	0	39.684932	1	1	0	1	2	1	1	...	None	4.25	29.481647	0.14	50.0	23.0	29.0	19.0	53.0	1.0
4	0	1	33.358904	0	0	0	1	2	0	1	...	1	51.85	3.972255	13.05	9.0	14.0	14.0	1000000.0	2043.0	0.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
182	1	1	37.575342	1	1	0	1	1	0	0	...	1	11.08	2.522750	4.39	44.0	15.0	22.0	16.0	385.0	1.0
183	0	1	22.895890	0	0	0	1	0	1	1	...	1	4.64	1.038858	4.47	44.5	12.0	30.0	1000000.0	634.0	1.0
184	0	1	27.347945	0	1	0	1	-1	1	1	...	1	7.73	1.635559	4.73	33.0	16.0	16.0	1000000.0	1895.0	0.0
185	1	1	27.780822	0	1	0	1	0	1	1	...	0	15.41	8.077770	1.91	24.0	13.0	14.0	54.0	382.0	1.0
186	1	1	55.553425	1	1	0	1	2	1	1	...	1	9.91	0.948135	10.45	37.0	18.0	20.0	1000000.0	1109.0	0.0

187 rows × 37 columns

print("Dataset overview:")
print(f"Name: {file_name}")
print(f"Objects number: {data_df.shape[0]}; Attributes number: {data_df.shape[1]}")
print("Basic attribute statistics:")
data_df.describe()

Dataset overview:
Name: bmt.arff
Objects number: 187; Attributes number: 37
Basic attribute statistics:

	Donorage	Recipientage	CD34kgx10d6	CD3dCD34	CD3dkgx10d8	Rbodymass	ANCrecovery	PLTrecovery	time_to_aGvHD_III_IV	survival_time	survival_status
count	187.000000	187.000000	187.000000	182.000000	182.000000	185.000000	187.000000	187.000000	187.000000	187.000000	187.000000
mean	33.472068	9.931551	11.891781	5.385096	4.745714	35.801081	26752.866310	90937.919786	775408.042781	938.743316	0.454545
std	8.271826	5.305639	9.914386	9.598716	3.859128	19.650922	161747.200525	288242.407688	418425.252689	849.589495	0.499266
min	18.646575	0.600000	0.790000	0.204132	0.040000	6.000000	9.000000	9.000000	10.000000	6.000000	0.000000
25%	27.039726	5.050000	5.350000	1.786683	1.687500	19.000000	13.000000	16.000000	1000000.000000	168.500000	0.000000
50%	33.550685	9.600000	9.720000	2.734462	4.325000	33.000000	15.000000	21.000000	1000000.000000	676.000000	0.000000
75%	40.117809	14.050000	15.415000	5.823565	6.785000	50.600000	17.000000	37.000000	1000000.000000	1604.000000	1.000000
max	55.553425	20.200000	57.780000	99.560970	20.020000	103.400000	1000000.000000	1000000.000000	1000000.000000	3364.000000	1.000000

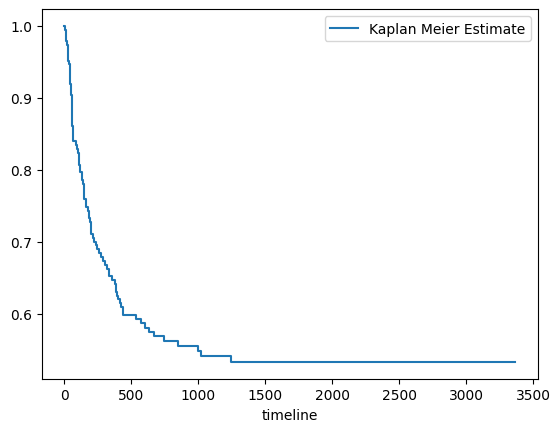

Survival curve for the entire set (Kaplan Meier curve)

from lifelines import KaplanMeierFitter

# create a kmf object
kmf = KaplanMeierFitter()

# Fit the data into the model
kmf.fit(data_df['survival_time'], data_df['survival_status'],label='Kaplan Meier Estimate')

# Create an estimate
kmf.plot(ci_show=False)

<Axes: xlabel='timeline'>

Import RuleKit

from rulekit.survival import SurvivalRules
from rulekit.params import Measures

Helper function for creating ruleset characteristics dataframe

def get_ruleset_stats(model) -> pd.DataFrame:
    tmp = model.parameters.__dict__
    del tmp['_java_object']
    return pd.DataFrame.from_records([{**tmp, **model.stats.__dict__}])

Rule induction on full dataset

X = data_df.drop(['survival_status'], axis=1)
y = data_df['survival_status']

srv = SurvivalRules(
    survival_time_attr = 'survival_time'
)
srv.fit(X, y)
ruleset = srv.model
predictions  = srv.predict(X)

ruleset_stats = get_ruleset_stats(ruleset)

display(ruleset_stats)

	minimum_covered	maximum_uncovered_fraction	ignore_missing	pruning_enabled	max_growing_condition	time_total_s	time_growing_s	time_pruning_s	rules_count	conditions_per_rule	induced_conditions_per_rule	avg_rule_coverage	avg_rule_precision	avg_rule_quality	pvalue	FDR_pvalue	FWER_pvalue	fraction_significant	fraction_FDR_significant	fraction_FWER_significant
0	5.0	0.0	False	True	0.0	3.486387	1.575069	1.873982	4	3.0	86.25	0.485294	1.0	0.999678	0.000322	0.000375	0.00048	1.0	1.0	1.0

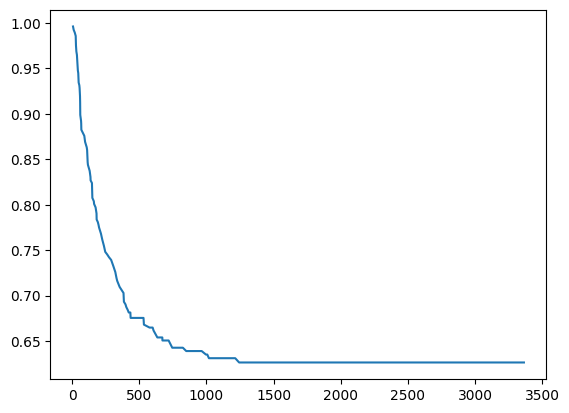

plt.plot(predictions[0]["times"], predictions[0]["probabilities"])

[<matplotlib.lines.Line2D at 0x2c9b984d520>]

Generated rules

for rule in ruleset.rules:
    print(rule)

IF Relapse = {0} AND Donorage = (-inf, 45.16) AND Recipientage = (-inf, 17.45) THEN
IF HLAmismatch = {0} AND Donorage = <33.34, 42.14) AND Gendermatch = {0} AND RecipientRh = {1} AND Recipientage = <3.30, inf) THEN
IF Relapse = {1} AND PLTrecovery = <15.50, inf) THEN
IF PLTrecovery = (-inf, 266) THEN

Rules evaluation on full set

integrated_brier_score = srv.score(X, y)
print(f'Integrated Brier Score: {integrated_brier_score}')

Integrated Brier Score: 0.2154545054362314

Stratified K-Folds cross-validation

from sklearn.model_selection import StratifiedKFold

skf = StratifiedKFold(n_splits=10)

ruleset_stats = pd.DataFrame()
survival_metrics = []


for train_index, test_index in skf.split(X, y):
    x_train, x_test = X.iloc[train_index], X.iloc[test_index]
    y_train, y_test = y.iloc[train_index], y.iloc[test_index]

    srv = SurvivalRules(
        survival_time_attr = 'survival_time'
    )
    srv.fit(x_train, y_train)
    ruleset = srv.model

    ibs = srv.score(x_test, y_test)

    survival_metrics.append(ibs)
    ruleset_stats = pd.concat([ruleset_stats, get_ruleset_stats(ruleset)])

Ruleset characteristics (average)

display(ruleset_stats.mean())

minimum_covered                 5.000000
maximum_uncovered_fraction      0.000000
ignore_missing                  0.000000
pruning_enabled                 1.000000
max_growing_condition           0.000000
time_total_s                    2.550110
time_growing_s                  1.032773
time_pruning_s                  1.515146
rules_count                     5.700000
conditions_per_rule             3.329405
induced_conditions_per_rule    68.789167
avg_rule_coverage               0.389676
avg_rule_precision              1.000000
avg_rule_quality                0.998029
pvalue                          0.001971
FDR_pvalue                      0.002043
FWER_pvalue                     0.002328
fraction_significant            1.000000
fraction_FDR_significant        1.000000
fraction_FWER_significant       1.000000
dtype: float64

Rules evaluation on dataset (average)

print(f'Integrated Brier Score: {np.mean(survival_metrics)}')

Integrated Brier Score: 0.24666778331912664

Hyperparameters tuning

This one gonna take a while…

from sklearn.model_selection import StratifiedKFold
from sklearn.model_selection import GridSearchCV
from rulekit.params import Measures

def scorer(estimator, X, y):
    return (-1 * estimator.score(X,y))

# define models and parameters
model = SurvivalRules()

# define grid search
grid = {
    'survival_time_attr': ['survival_time'],
    'minsupp_new': range(3, 10),
}

cv = StratifiedKFold(n_splits=3)
grid_search = GridSearchCV(estimator=model, param_grid=grid, cv=cv, scoring=scorer)
grid_result = grid_search.fit(X, y)

# summarize results
print("Best Integrated Brier Score: %f using %s" % ( (-1)*grid_result.best_score_, grid_result.best_params_))

Best Integrated Brier Score: 0.215827 using {'minsupp_new': 3, 'survival_time_attr': 'survival_time'}

Building model with tuned hyperparameters

Split dataset to train and test (80%/20%)

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, shuffle=True, stratify=y)

srv = SurvivalRules(
    survival_time_attr='survival_time',
    minsupp_new=5
)
srv.fit(X_train, y_train)
ruleset = srv.model
ruleset_stats = get_ruleset_stats(ruleset)

Rules evaluation

display(ruleset_stats.iloc[0])

minimum_covered                      5.0
maximum_uncovered_fraction           0.0
ignore_missing                     False
pruning_enabled                     True
max_growing_condition                0.0
time_total_s                     2.74258
time_growing_s                  0.960948
time_pruning_s                   1.78038
rules_count                            7
conditions_per_rule             3.428571
induced_conditions_per_rule    71.142857
avg_rule_coverage               0.299137
avg_rule_precision                   1.0
avg_rule_quality                0.994714
pvalue                          0.005286
FDR_pvalue                      0.005376
FWER_pvalue                     0.005743
fraction_significant                 1.0
fraction_FDR_significant             1.0
fraction_FWER_significant            1.0
Name: 0, dtype: object

Validate model on test dataset

integrated_brier_score = srv.score(X_test, y_test)
print(f'Integrated Brier Score: {integrated_brier_score}')

Integrated Brier Score: 0.22534751550121987

predictions = srv.predict(X_test)

plt.plot(predictions[0]["times"], predictions[0]["probabilities"])

[<matplotlib.lines.Line2D at 0x2c9b76a6f10>]
